Product Description

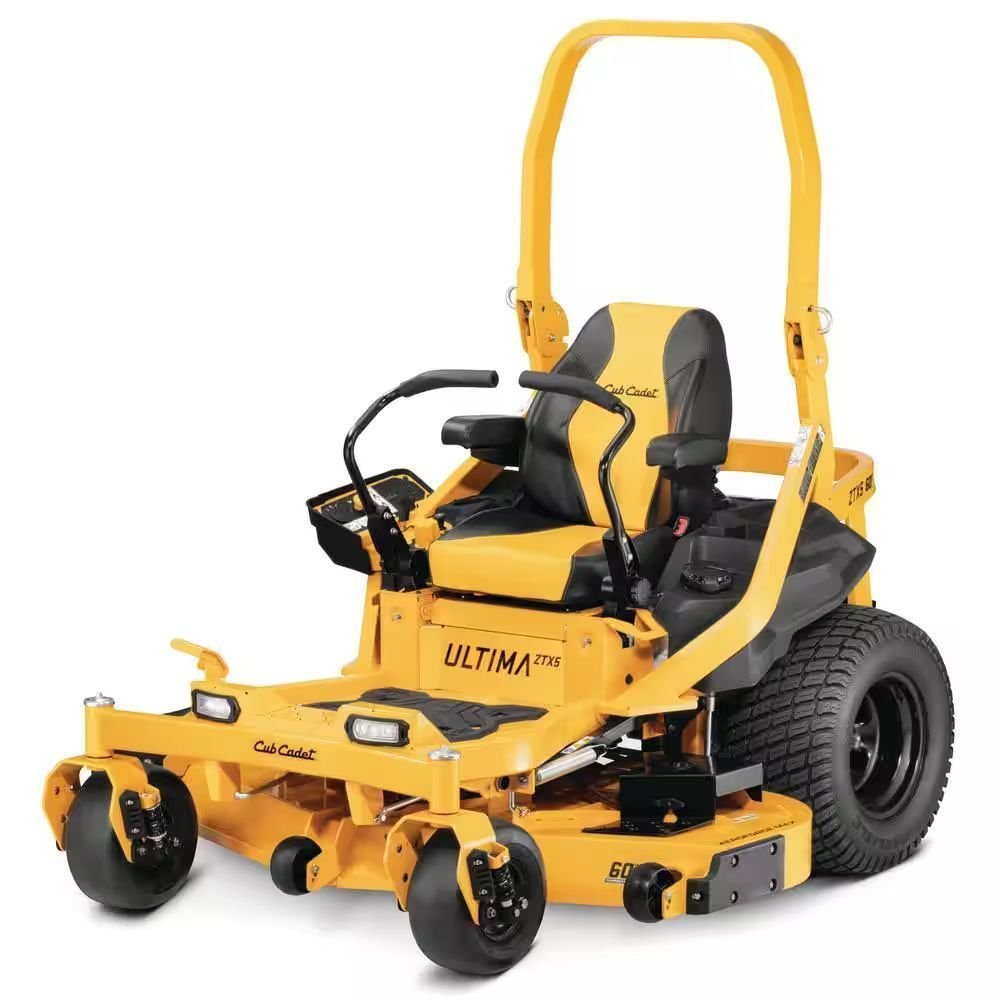

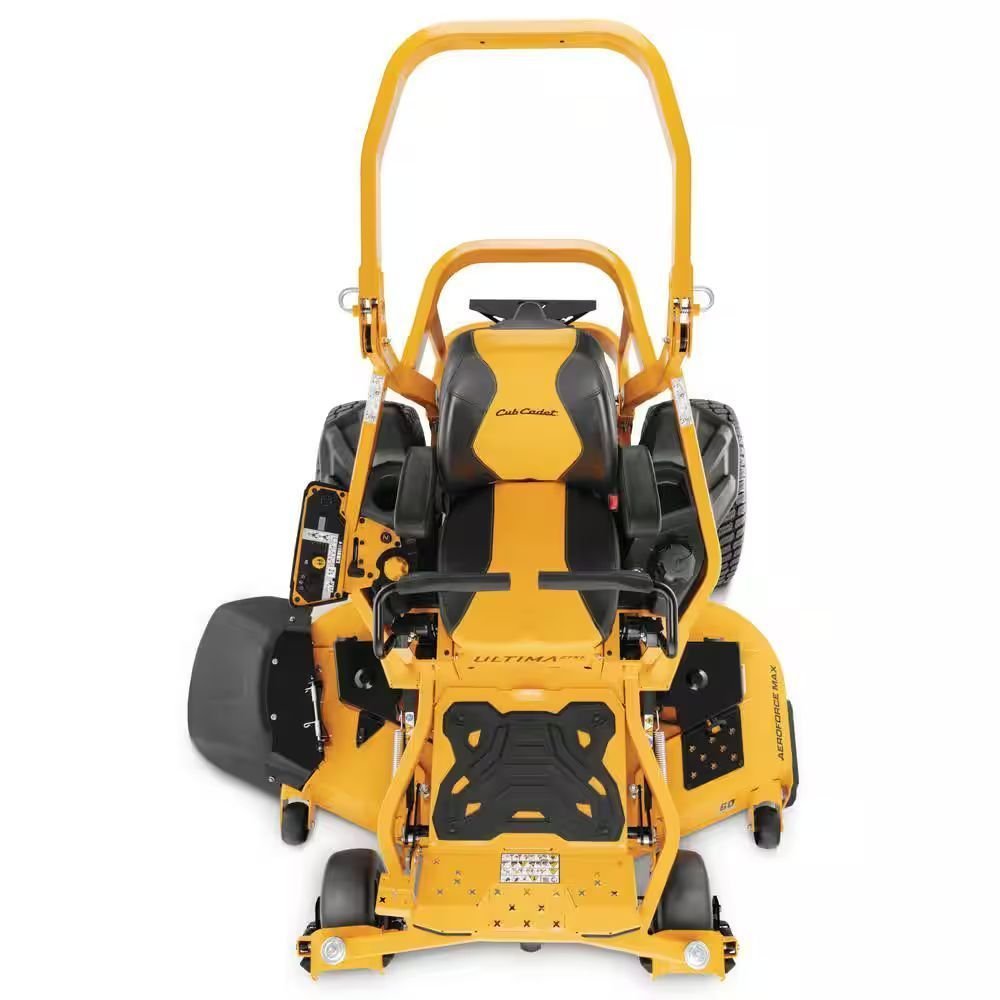

The Ultima Series ZTX5 60 is another step up in the Cub Cadet ultimate mowing experience, built to raise the bar for strength without sacrificing operator comfort and packed with commercial-grade features. Starting with the robotically welded 10-Gauge AeroForce maximum fabricated steel deck with side, top and tough reinforcements engineered for excellent airflow, to help clippings move through the deck cleanly and efficiently providing exceptional bagging performance that was specifically designed to prevent clumping and blockage. Designed to ride in comfort with a large 24 in. high back seat with cushioned armrests, comfortably designed lap bars, spring-assist deck lift and rubber floor mat allow you to efficiently cut at your maximum speed up to 8 MPH. The 1.5 in. x 3 in. tubular steel frame provide strength and rigidity while an open frame design provides optimal leg room and a hinged/removable floor pan allows quick and easy access to the deck and engine for ease of maintenance. Ideal for mowing slight rolling hills and several obstacles from 4- to 12-acres. Backed by a 4-year/800-hour limited product warranty.
Highlights
- High-strength 1.5 in. x 3 in. tubular steel frame is built to provide optimal strength and rigidity while allowing accessibility for easy routine maintenance
- Equipped with a 25 HP Kohler confidant ZT740 V-twin OHV engine designed for reliable starting and exceptionally smooth, quiet operation
- Dual hydrostatic transmissions allow for 8 MPH forward (3.5 MPH reverse) ground speeds that helps leave your lawn with a premium finish

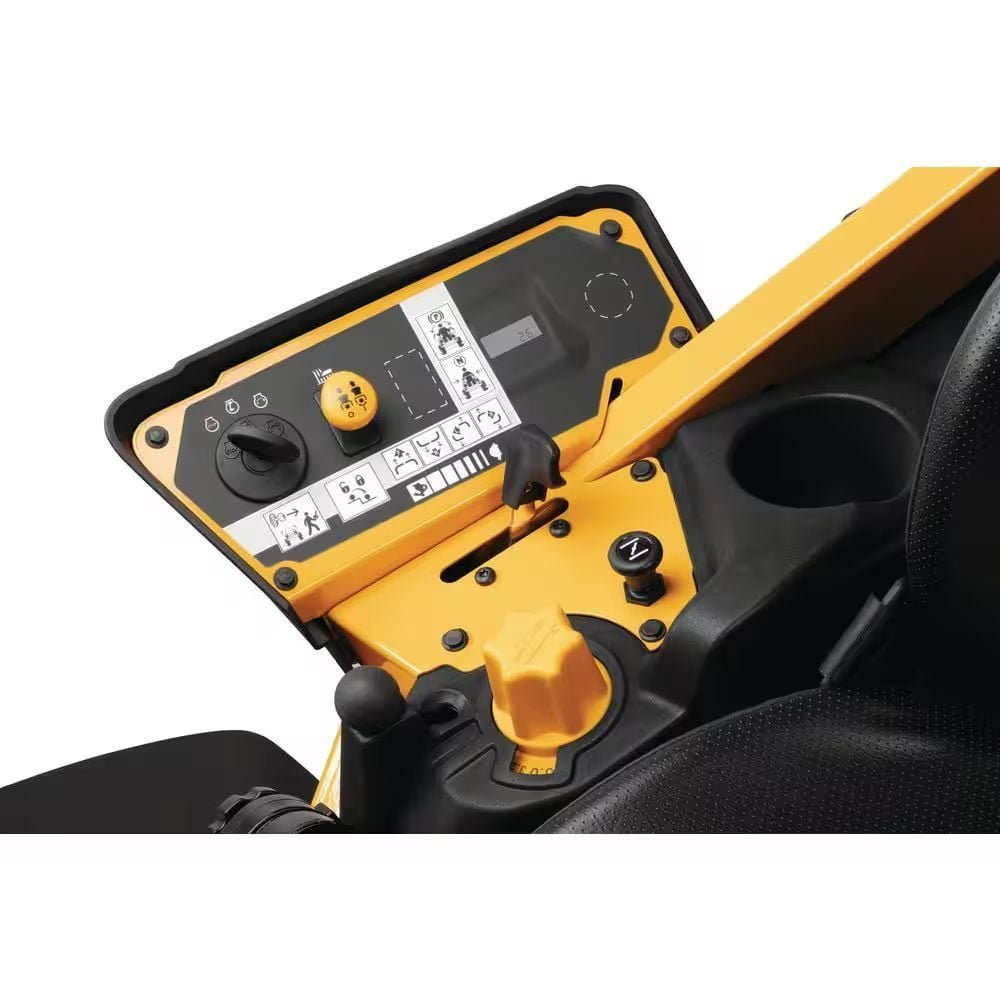

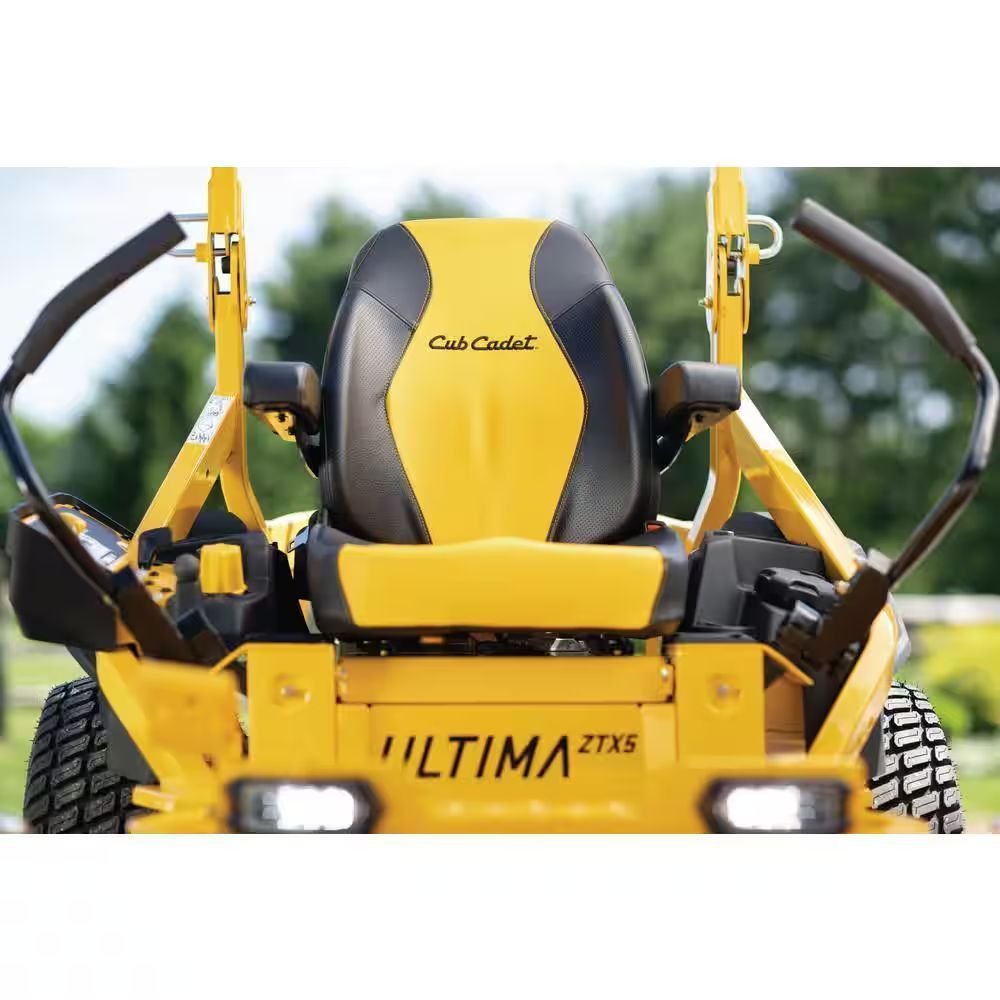

- High comfort, high performance an automotive-inspired, fully adjustable 24 in. high back adjustable seat with cushioned armrests, ball-bearing seat slide and patented suspension system, adjustable lap bars and hand grips built for comfort
- Independent suspension caster wheels that are designed to deliver a smooth ride with minimal vibration
- 60 in. aeroforce maximum 10-Gauge reinforced fabricated steel cutting deck with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design that is built to provide flawless results, mows a wide area of grass to help minimize cutting time and provides your lawn with a clean, premium cut
- 4-year/800-hour limited product warranty plus limited lifetime warranty on the frame and fabricated deck shell for the ultimate peace-of-mind
- Backed by expert service and knowledgeable support from the nationwide network of Cub Cadet dealers
- Ideal for 4 acres to 12 acres with slightly rolling hills and several obstacles
- Extensive lineup of premium attachments and accessories include baggers, mulch kits, carts and many others to expand your zero-turn’s capabilities (included)
- Comes fully crated and fully assembled upon arrival
Specifications
Dimensions
| Assembled Depth (in.) | 88 in | Assembled Height (in.) | 53 in |
| Assembled Width (in.) | 65 in | Cutting Width (in.) | 60 inches |

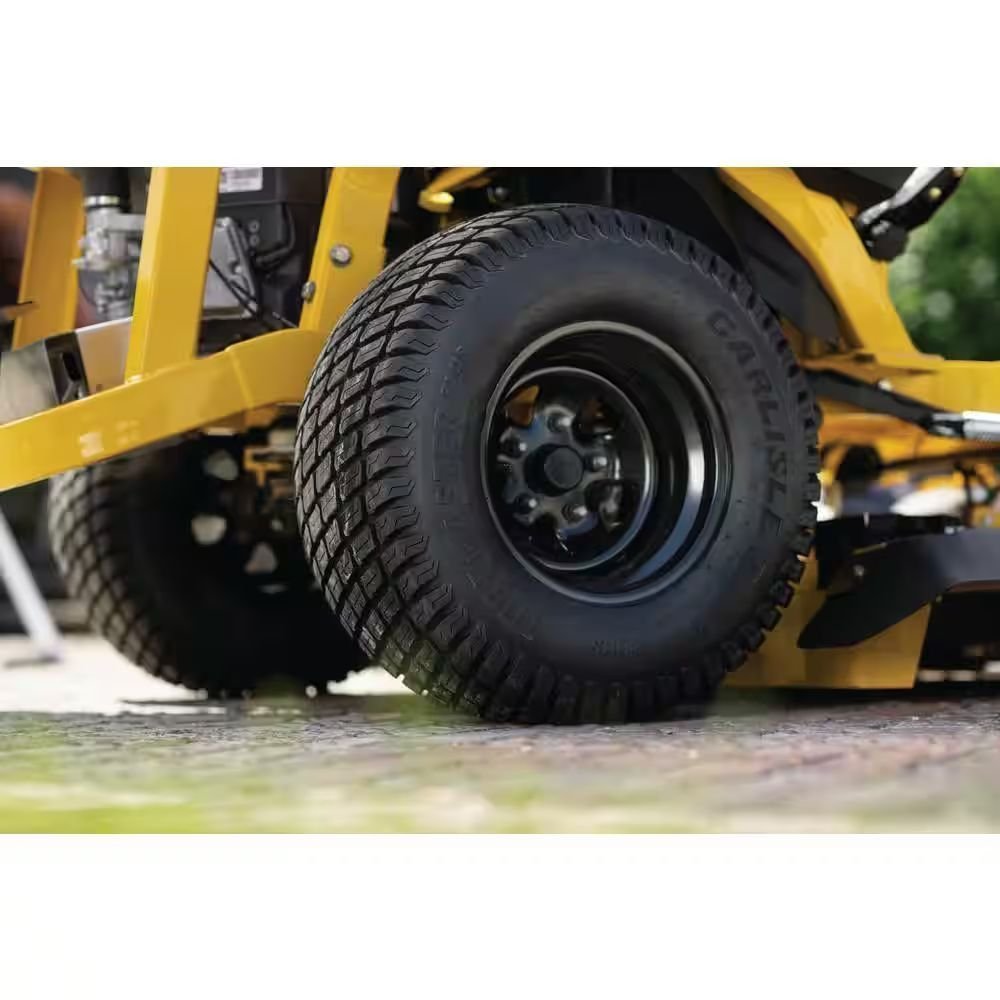

| Front Wheel Size (in.) | 13 in | Mower Deck Width (in.) | 60 in |
| Rear Wheel Size (in.) | 23 in | Turning Radius (in.) | 0 |
Details
| Assembly Required | No | Commercial / Residential | Residential |
| Cutting Options | Side-Discharge | Deck Material | 10 Gauge Steel |
| Deck Type | Fabricated | Drive Type | Rear-wheel Drive |
| Engine Displacement (cc) | 747 | Engine Make | Kohler Engine |
| Engine Torque (ft.-lb.) | 0 | Fuel Tank Capacity (gal.) | 5.5 gal |
| Horsepower (HP) | 25 hp | Included with Riding Mowers | Battery(s), Engine Oil, Roll Bar |
| Lawn Mower Type | Zero Turn Mower | Maximum Cutting Height (in.) | 4.5 in |
| Maximum Forward Speed (mph) | 8 | Maximum Reverse Speed (mph) | 3.5 |
| Minimum Cutting Height (in.) | 1 in | Mower Size | Large |
| Number of Blades | 3 blades | Number of Cylinders | V-Twin |
| Number of Deck Wheels | 3 | Oil Capacity (oz.) | 64 fl oz (US) |
| Power Type | Gas | Product Weight (lb.) | 1140 lb |
| Recommended Oil Type | 10W30 | Refurbished | No |
| Riding Mower Features | Adjustable Cutting Height, Arm Rests, Battery level indicator, Built-in Hitch, Cup Holder, Headlights, High Back, Hour Meter, Keyed start, Pneumatic Tires, Reverse Mowing, Rollover protection, Rust Resistant, Rust resistant deck, Single-lever height adjustment, Swivel Wheels, Translucent Fuel Tank | ||
| Size of Yard | 4 or More Acres | Start Type | Electric |
| Terrain Type | Flat with Obstacles, Hilly | Transmission Type | Hydrostatic |
Warranty / Certifications
| Certifications and Listings | No Certifications or Listings | Manufacturer Warranty | 4-Year/800-Hour Limited Warranty |
